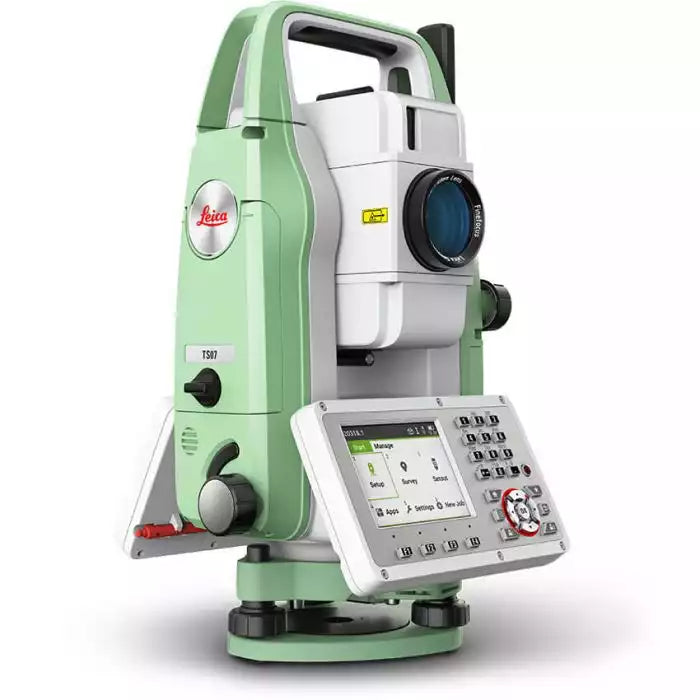

The Leica FlexLine TS07 high-quality, manual total station is based on a proven product concept that has been revolutionising the world of measurement and survey for nearly 200 years. The Leica TS07 is equipped with a comprehensive application-based software package - Leica FlexField software - that enables most survey and stakeout tasks to be carried out easily and efficiently. The new FlexLine TS07 works reliably and delivers accurate results even in the harshest environments.



Work faster: measure more points per day due to faster measurement and stakeout procedures (endless drives, trigger key, drives on both sides, pinpoint EDM and more), supported by our comprehensive and user-friendly Leica FlexField software.

Use it trouble-free: increase productivity and minimise downtime by relying on instruments that simply work and come with a global service and support network.

Choose products that are built to last: FlexLine operates with the same high level of quality even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold).


Control your investment: reliability, speed and accuracy ensure a lower investment over the product lifetime and a higher resell value.

Save time with AutoHeight: measure, read and set the instrument height automatically with this revolutionary feature in the FlexLine TS07 (optional). Errors are minimised and the setup process onsite is faster.




Leica FlexLine TS07
ANGULAR MEASUREMENT
Accuracy Hz and V Absolute, continuous, diametrical1 1’’ / 2’’ / 3’’ / 5’’ / 7“
  • Display resolution: 0.1’’ (0.1 mgon)
  • Quadruple axis compensation
  • Compensator setting accuracy2: 0.5’’ / 1’’/ 1.5’’ / 2’’
  • Compensator range: +/- 3.78’ (+/- 0.07gon)
  • Electronic level resolution: 2“
  • Circular level sensitivity: 6` / 2mm
Available
DISTANCE MEASUREMENT
Range
  • Prism (GPR1, GPH1P): 1.5m to 3.500m
  • Prism GPR1 (Long Range mode) > 10.000m
Available
Non-Prism / Any surface
R500 Available
R1000 Optional
Accuracy / Measurement time Single prism
  • Precise+ / Once: 1mm + 1.5ppm (typical 2.4s)
  • Precise&Fast / Once&Fast: 2mm + 1.5ppm (typical 2s)
  • Tracking / Continously: 3mm + 1.5ppm (typical < 0.15s)
  • Averaging: 1mm + 1.5ppm
  • Long Range mode / > 4km: 5mm + 2ppm (typical 2.5s)
Available
Non-Prism / Any surface
  • 0 m - 500m: 2mm + 2ppm (typical 3-6s)
  • > 500m: 4mm + 2ppm (typical 3-6s)
Available
Laser dot size
  • At 30m: 7mm x 10mm
  • At 50m: 8mm x 20mm
  • At 100m: 16mm x 25mm
Available
Telescope
  • Magnification: 30x
  • Resolving power: 3”
  • Focusing range: 1.55m / 5.08ft to infinity
  • Field of view: 1°30’ / 1.66gon / 2.7m at 100m
Available
GENERAL
Display and keyboard 3.5“ (inch), 320 x 240 px QVGA, colour, touch, 28 keys5b
2nd keyboard Optional
Key illumination Available
Operation
  • Endless drives for HZ & V
  • Trigger-Key: user definable with 2 functions
Available
Power management Exchangeable Lithium-Ion battery
Operating time with GEB361 up to 30h
Operating time with GEB331 up to 15h
Battery charging time with
GKL341 charger for GEB361 / GEB331 3h 30min / 3h
GKL311 charger for GEB361 / GEB331 6h 30min / 3h 30min
Data storage
  • Internal memory: 2GB Flash
  • Memory card: SD card 1GB or 8GB
  • USB memory stick: 1GB
Available
Processor
  • TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
  • Operating system – Windows EC7
Available
Interfaces RS2327, USB device Available
Bluetooth®8, WLAN9 Available
Mobile Data sidecover: LTE-Modem for internet access Optional
Guide Light (EGL)
  • Working range: 5m to 150m
  • Position accuracy: 5cm at 100m
  • Wavelength red /orange: 617nm / 593nm
Available
(R1000)
Laser plummet
(Laserclass 2)
Accuracy
  • Plumb line deviation: 1.5mm at 1.5m instrument height
  • Diameter of laser point: 2.5mm at 1.5m instrument height
Available
AutoHeight module for automatic instrument height measurement (Laserclass 2) Accuracy
  • Distance accuracy: 1.0mm @ 1m
  • Distance range: 0.7m to 2.7m
Optional
Weight 4.3 - 4.5kg
Environmental specifications Working temperature range: –20°C to +50°C Available
Arctic version: –35°C to +50°C Available
Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing Available
Military Standard 810G, Method 506.5 Available
