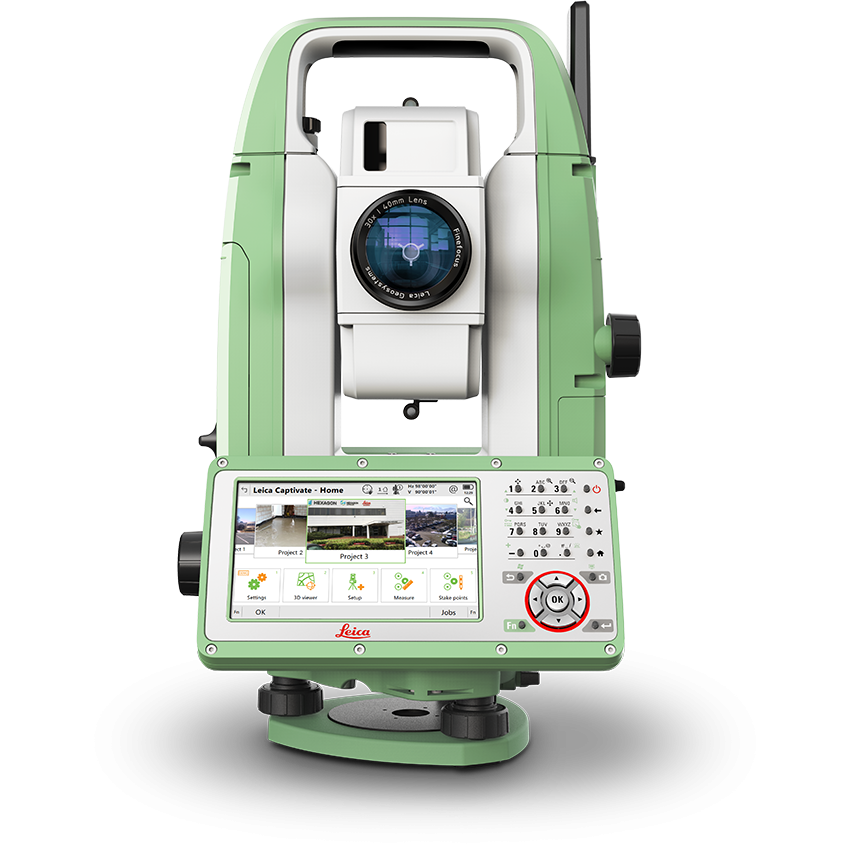

01 627 0975The Leica FlexLine TS10 manual total station combines user-friendly, ergonomic design with high-end reliability under harsh conditions. It enables you to tie into the modern 3D dataflow, including enhanced linework and coding. The TS10 offers mobile data device integration as an option. The larger, highly visible colour- and touchscreen helps you to complete your surveying tasks with the highest speed and accuracy. The new FlexLine generation of manual total stations relies on a proven product concept that has been revolutionising the world of measurement and survey for nearly 200 years.
Work faster: measure more points per day due to faster measurements and stakeout procedures, supported by the revolutionary Leica Captivate field software. The software is made to make your work easier and more enjoyable.
Use it trouble-free: increase productivity and minimise downtime by relying on instruments that simply work and come with a global service and support network.
Choose products that are built to last: even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold), FlexLine still operates with the same high level of quality.
Control your investment: reliability, speed and accuracy ensure a lower investment over the product lifetime and a higher resell value.
Save time with AutoHeight: this revolutionary feature enables the FlexLine TS10 manual total station to automatically measure, read and set the instrument height. Errors are minimised and the setup process onsite is faster.
![](https://www.sccssurvey.co.uk/media/wysiwyg/Leica-LOC8_1.jpg)
Leica FlexLine TS03/TS07/TS10 | ||
ANGULAR MEASUREMENT | ||
Accuracy Hz and V | Absolute, continuous, diametrical1 | 1’’ / 2’’ / 3’’ / 5’’“ |
|
![]() |
|
DISTANCE MEASUREMENT | ||
Range |
|
![]() |
Non-Prism / Any surface | ||
R500 | ![]() |
|
R1000 | ![]() |
|
Accuracy / Measurement time | Single prism
|
![]() |
Non-Prism / Any surface
|
![]() |
|
Laser dot size |
|
![]() |
Telescope |
|
![]() |
GENERAL | ||
Display and keyboard | 5“ (inch), 800 x 480 pixels WVGA, colour, touch, 25 keys5b, (optional5c: 37 keys with function keys) | |
2nd keyboard | ![]() |
|
Key illumination | ![]() |
|
Operation |
|
![]() |
Power management | Exchangeable Lithium-Ion battery | |
Operating time with GEB361 | up to 18h | |
Operating time with GEB331 | hup to 9h | |
Battery charging time with | ||
GKL341 charger for GEB361 / GEB331 | 3h 30min / 3h | |
GKL311 charger for GEB361 / GEB331 | 6h 30min / 3h 30min | |
Data storage |
|
![]() |
Processor |
|
![]() |
Interfaces | RS2327, USB device | ![]() |
Bluetooth®8, WLAN9 | ![]() |
|
Mobile Data sidecover: LTE-Modem for internet access | ![]() |
|
Guide Light (EGL) |
|
![]() (R1000) |
Laser plummet (Laserclass 2) |
Accuracy
|
![]() |
AutoHeight module for automatic instrument height measurement (Laserclass 2) | Accuracy
|
![]() |
Weight | 4.4 - 4.9kg | |
Environmental specifications | Working temperature range: –20°C to +50°C | ![]() |
Arctic version: –35°C to +50°C | ![]() |
|
Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing | ![]() |
|
Military Standard 810G, Method 506.5 | ![]() |
