Laser scanner sphere with a special magnetic base

• Plastic scan sphere with a special matt textured finish for optimal reflection.

• Impact-resistant plastic. Washable and dishwasher-safe surface

• Fixed points for linking several viewpoints

• Assignment of spatial reference information to a spatial data set

• Can be used from all sides

• Suitable for indoor and outdoor use

Scanner ball with special magnetic base:

• Special magnetic base with 11 magnets for all metallic surfaces and other applications

• With recess for use in connection with the fixed points RSFP-X90

• For use in conjunction with RSFP-X95-1, RSFP-X95-2 and RSFP-X95-3 adapters:

  A) This allows the laser scanner sphere to be placed on any standard tripod or tripod. See fig.

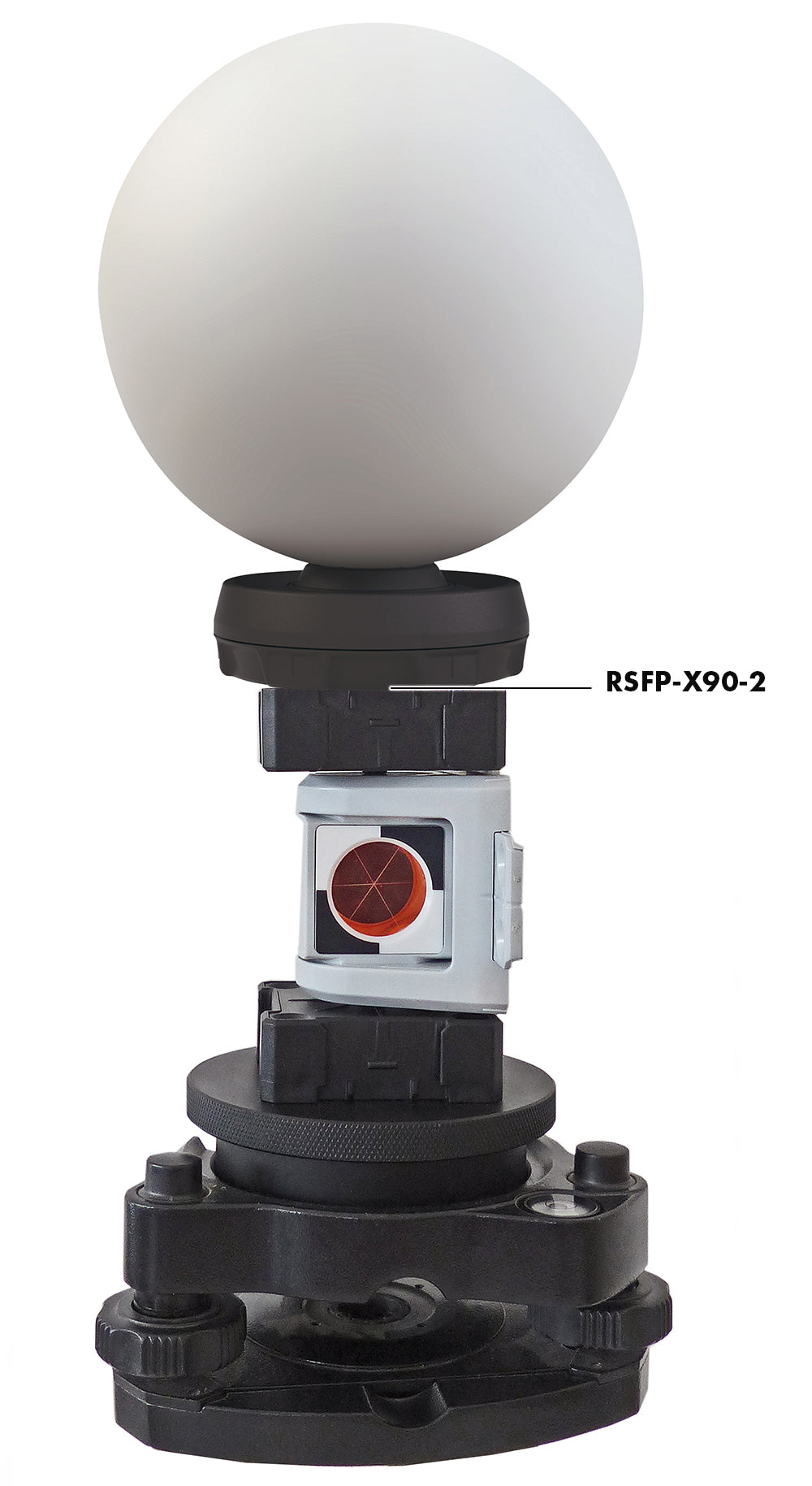

  B) This allows the laser scanner sphere to be placed exactly over an RS Mini prism. See fig.

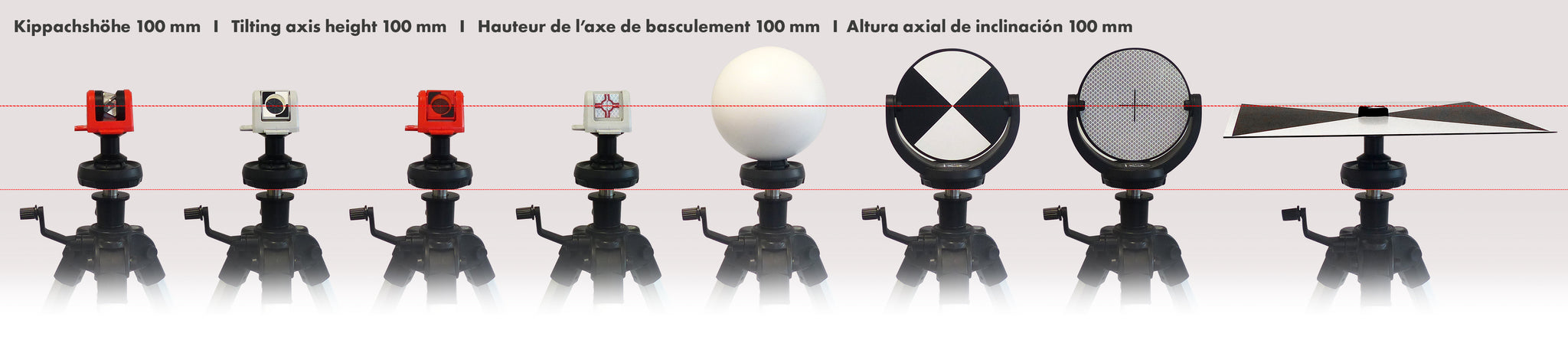

• The tilting axis height of 100 mm corresponds to common prisms so that the XYZ coordinates can also be easily and precisely determined using a total station.
  If necessary, we also offer a combined solution of magnetic base, adapter, and prism with a tilting axis height of 100 mm (see fig.)

Technical data:
Diameter: Ø 145mm
Tilting axis height: 100mm (RSLB10M)
Weight scanner sphere (only sphere): 250g
Sphericity: 0.3mm at 20ºC
Radius accuracy: ± 0.15mm at at 20ºC

Dimension file RSLB10M  for download.
