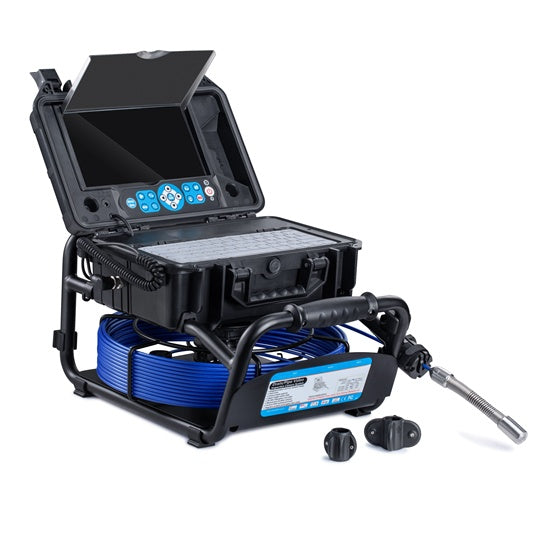

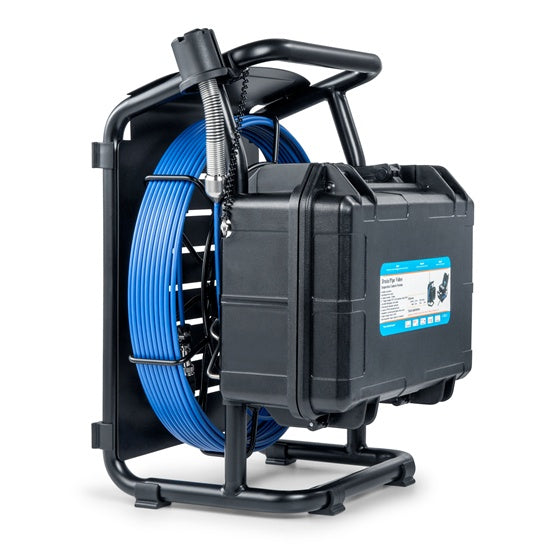

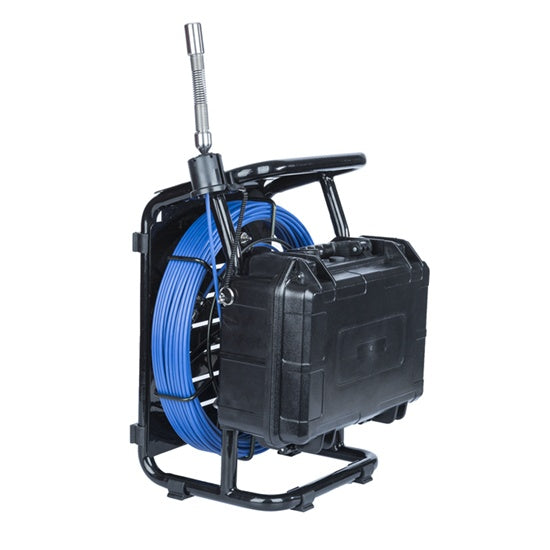

TVBTech 40m 3499F Drain / Pipe Inspection Camera
Price
€1,950.00
Detection & InspectionDetection & SafetyDrain Cameras TVBTech 40m 3499F Drain / Pipe Inspection Camera
Price
€1,950.00
Incl. VAT
€2,398.50
New 23mm Video Drain Pipe Inspection Camera with 20m/66ft ~ 40m/130ft cable 3499F
Please download the brochure of this model by clicking the keywords: TvbTech 3499F Brochure
This is a professional video inspection camera designed for the inspection of sewers, pipes, air ducts, underground cable pipes, etc. Equipped with a 23mm Sony CCD camera head, 20-40m fiberglass cable, and 7'' or 10inch LCD monitor with SD card recording, it's a great choice for pipe DN 40MM - 150MM.
Please check our Youtube video for this new pipe camera:https://youtu.be/JtqVqOPcHnY
Key features of this new pipe inspection camera are as follows:
- Unique, professional, and compact design.
- The cable reel is out of the box and easy to clean.
- Easy to carry, convenient transportation.
- Comes with a smart braking system.
- The keyboard is very easy to operate, like a laptop.
All-in-One Video pipe inspection camera with 20/30/40m fiberglass cable and 7" monitor with DVR feature:
- 1/3 inch Sony CCD camera, 120° wide vision angle
- The stainless steel camera head is IP68.
- Sapphire glass lens cover, 12 high-light white LEDs
- Diameter of camera: 23 mm
- Two plastic guides for camera head, Φ46mm & 80mm
- 7” or 10'' LCD color monitor, with image rotate button
- SD Card slot to store still pictures or videos
- One push record button
- LED brightness control buttons
- With a microphone for local audio recording
- Rechargeable battery lasts up to 6 hours
- On-Screen date and time
- 20, 30, or 40m fiberglass φ5.2mm push rod
- Rotatable cable reel mounted in the case for convenient operation
- Ability to go through 90°bends in Φ45mm pipes
- With a smart braking system
- With on-screen distance counter
- With a Keyboard for text input
Applications:
- For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery, and Building Inspection;
- For Maintenance of Plumbing and Wiring behind walls
What’s included?
- 1 x 23mm Camera head
- 1 x 40m cable wheel
- 1 x battery pack
- 1 x remote control
- 1 x Screwdriver
- 1 x power adapter
- 1 x car charger
- 1 x waterproof suitcase with a monitor mounted
Specifications:
Camera Head
Camera Size: Φ23mm×45mm
Camera Total Length: 120mm（short spring camera head）/250mm（long spring camera head）
Sensor: 1/3" Sony, 480 TV-Line
Pixel: 752H * 582V
View Angle: 120°
Transmitter: 512hz built-in(selectable)
Focus Distance: 20cm (approx)
Depth-of-Field: 100cm(approx)
Front Lens: Sapphire glass
Water-Proof: 20m Under Water(Camera fix on Cable)
Shell Material: #304 stainless steel
Lighting: Built-in 12×LED(White)
Operating Temperature: -10~50℃/+14~+122℉
Storage Temperature: -20~60℃/+4~+140℉
Cable Wheel
20/30/40M fiberglass rod cable with on-screen distance counter
Dia. of push cable: 5.2mm
Material of cable: Fiberglass covered by PP
Operation: Mounted and rotatable in the case
LCD Monitor
Screen: 7-inch or 10-inch 16:9 Super bright HD color LCD screen
Resolution: 800x480 RGB
Mirror and Flip: support image mirror, and flip
Video Resolution: 720*576 25fps Max.
Video Encoding: H.264
Photograph: 720*480/720*576
Audio Recording: local sound record
Output: TV and Audio output
On-screen date and time
On-screen meter/ft. distance display(optional)
External memory: support SD memory card up to 32GB
Data output: USB 2.0 to PC
Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese
Battery Pack
Power Input: DC 9V-12V
Battery Capacity: 7.4V 5200mAh Li-on Battery
Power Output: 6-12V DC, USB 5V
Work/Charge time: 6/8 hours
